Sound Absorption Coefficient Explained

The sound absorption coefficient (α) is a numerical value between 0 and 1 that indicates what fraction of incident sound energy a material absorbs at a specific frequency. A value of 0.00 means the material reflects all sound without absorbing any of it. A value of 1.00 means the material absorbs all incident sound energy and reflects none.

Because sound behaves differently at different frequencies, the absorption coefficient is always measured and reported across multiple frequency bands - typically 125 Hz, 250 Hz, 500 Hz, 1,000 Hz, 2,000 Hz, and 4,000 Hz.

What Is the Sound Absorption Coefficient?

The sound absorption coefficient (α) is expressed as a decimal fraction and calculated as the ratio of absorbed sound intensity to incident sound intensity:

α = I_absorbed / I_incident

For example, a material with α = 0.75 at 1,000 Hz absorbs 75% of the sound energy at that frequency and reflects the remaining 25%.

The coefficient is always frequency-dependent. The same material can absorb poorly at low frequencies (125-250 Hz) and efficiently at high frequencies (1,000-4,000 Hz), or vice versa. This is why a single number is never sufficient to describe a material's acoustic behavior across the full audible range.

How Sound Absorption Works

Sound absorption occurs when sound waves penetrate a material and their energy is converted into heat through molecular friction. This process is most efficient in porous, fibrous, or soft materials, where air molecules are forced through narrow channels and cavities as the sound wave passes.

When a sound wave reaches a surface, three things can happen: the energy is reflected back into the room, absorbed within the material, or transmitted through it. The absorption coefficient specifically measures the fraction that is not reflected - it includes both absorbed and transmitted energy, though in practice the absorbed portion dominates for most acoustic materials.

Hard, dense surfaces such as concrete, glass, and metal have very little porosity. Sound waves cannot penetrate them effectively, so most energy is reflected. This produces high reverberation and poor speech clarity in rooms that consist primarily of such surfaces.

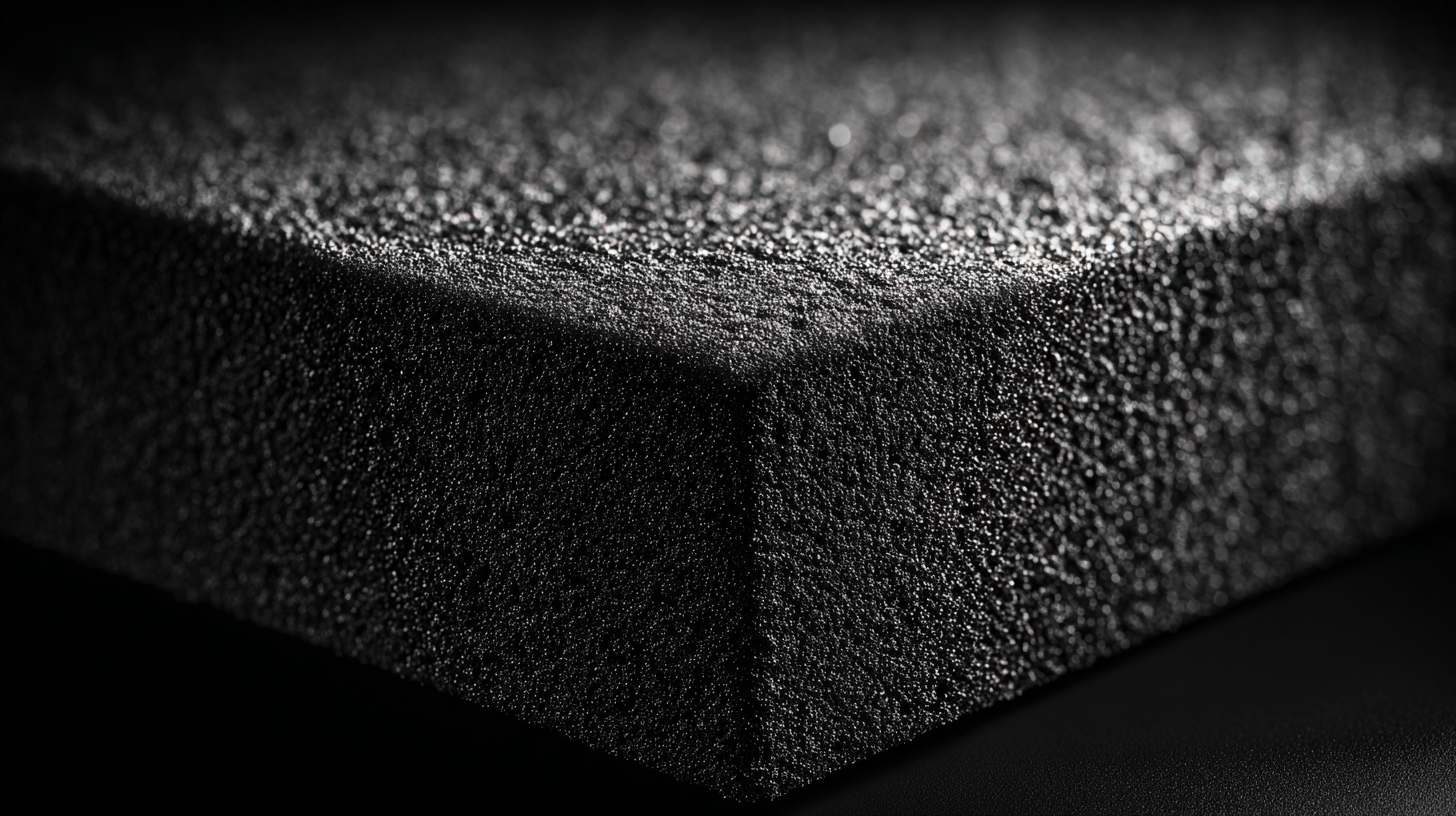

Soft, porous materials - acoustic panels, mineral wool, heavy curtains, carpet - allow sound waves to penetrate. As air molecules oscillate inside the material's porous structure, kinetic energy is progressively dissipated as heat. The thicker the material and the finer its porous structure, the more energy is dissipated, particularly at lower frequencies.

Sound Absorption Coefficient Chart for Common Materials

The table below lists sound absorption coefficients for common building materials and finishes across six standard octave bands (125 Hz to 4,000 Hz). Values are laboratory averages and may vary depending on installation method, surface finish, and manufacturer specifications. Always confirm values from product data sheets when specifying materials for critical applications.

Material	125 Hz	250 Hz	500 Hz	1,000 Hz	2,000 Hz	4,000 Hz
Acoustic panel (2" fiberglass)	0.44	0.99	1.00	1.00	1.00	1.00
Carpet (heavy, on concrete)	0.02	0.06	0.14	0.37	0.60	0.65
Carpet (heavy, on thick pad)	0.08	0.24	0.57	0.69	0.71	0.73
Acoustic curtain (heavy)	0.10	0.25	0.55	0.65	0.70	0.70
Upholstered furniture	0.19	0.37	0.56	0.67	0.61	0.59
Gypsum board (drywall)	0.29	0.10	0.05	0.04	0.07	0.09
Smooth concrete (unpainted)	0.01	0.01	0.02	0.02	0.02	0.05
Smooth concrete (painted)	0.01	0.01	0.01	0.02	0.02	0.02
Brick (standard)	0.05	0.04	0.02	0.04	0.05	0.05
Glass (large pane)	0.18	0.06	0.04	0.03	0.02	0.02
Hardwood floor	0.15	0.11	0.10	0.07	0.06	0.07
Suspended acoustic ceiling tile	0.25	0.45	0.78	0.92	0.90	0.85
Mass Loaded Vinyl (MLV)	0.05	0.05	0.06	0.08	0.10	0.12
Mineral wool board (2")	0.17	0.55	0.98	1.00	1.00	1.00

How to read this chart: Identify the primary problem frequency for your space. Speech clarity issues are most effectively addressed by improving absorption at 1,000-4,000 Hz. Low-frequency rumble and bass build-up require attention at 125-250 Hz. Select materials with higher α values at those specific bands.

NRC vs. Sound Absorption Coefficient - What's the Difference?

The Noise Reduction Coefficient (NRC) is a single-number rating derived from the sound absorption coefficient. It is calculated as the arithmetic average of α values at 250 Hz, 500 Hz, 1,000 Hz, and 2,000 Hz, rounded to the nearest 0.05.

NRC = average of α(250) + α(500) + α(1000) + α(2000)

NRC is useful for quick comparisons between products when the frequency profile is not critical. A mineral wool panel with NRC 0.95 will outperform a painted concrete wall with NRC 0.01 in any broadband application.

However, NRC can be misleading when low-frequency performance matters. A thin fabric and a thick velvet curtain can both have NRC 0.85, yet their behavior at 125-250 Hz differs significantly. The thin fabric may transmit most of its low-frequency energy rather than absorbing it, while the thick curtain dissipates considerably more.

For home theaters, recording studios, and mechanical equipment rooms - where low-frequency control is critical - always evaluate the full frequency profile, not just the NRC value.

How to Use Absorption Coefficients to Design a Room

The absorption coefficient feeds directly into the calculation of reverberation time (RT60) - the time it takes for sound to decay by 60 dB after the source stops. The standard formula (Sabine equation) is:

RT60 = 0.161 × V / A

Where V is room volume in cubic meters and A is total sound absorption in sabins, calculated as:

A = S₁α₁ + S₂α₂ + ... + Sₙαₙ

Each term multiplies the surface area (m²) of a material by its absorption coefficient at the relevant frequency. Summing these products across all room surfaces gives total absorption at that frequency.

The target RT60 depends on the room's purpose. Typical values in seconds:

• Recording studio (vocal booth): 0.2-0.4 s
• Home theater: 0.3-0.5 s
• Conference room / office: 0.4-0.6 s
• Classroom: 0.4-0.7 s
• Living room: 0.3-0.6 s

To reduce RT60, increase the total absorption A by adding materials with higher α at the problem frequencies. Combining materials that perform well across different frequency ranges ensures balanced acoustics across the full spectrum.

How Absorption Coefficients Are Measured

The standard method for measuring sound absorption coefficients is the reverberation room method, defined in ISO 354 and ASTM C423. A test sample (typically 10-12 m²) is placed in a reverberation chamber, and the decay rate of broadband sound is measured with and without the sample. The difference in decay rates allows calculation of the sample's absorption at each frequency band.

For smaller samples, the impedance tube method (ASTM E1050) is used. A material sample is placed at one end of a tube, a speaker generates a plane wave, and the resulting standing wave pattern is analyzed to determine absorption at specific frequencies. This method is faster and requires less material, but produces results that can differ from reverberation room measurements.

Laboratory results vary between facilities, mounting configurations, and manufacturers. A material tested under mounting condition A (directly on a rigid surface) will show different values than the same material tested under mounting condition E (suspended with an air gap). When specifying materials for design purposes, always request test reports that match the intended installation method.

Choosing High-Absorption Materials for Your Space

Materials with α ≥ 0.80 across mid and high frequencies are considered high-performance absorbers for most room treatment applications. The following categories consistently achieve this range:

Acoustic panels (fiberglass or mineral wool core, 1"-2" thick) deliver α values of 0.85-1.00 at 500 Hz and above. Thicker panels (2"-4") extend effective absorption down to 250-125 Hz. Acoustic panels are the most reliable broadband absorbers for studios, home theaters, offices, and bedrooms.

Mineral wool boards (e.g., Owens Corning 703/705) provide similar performance to commercial acoustic panels and are commonly used as panel core material or standalone ceiling clouds.

Acoustic curtains offer moderate absorption (α 0.55-0.70 at mid frequencies) and are effective at windows and room dividers where rigid panels are not practical.

Mass Loaded Vinyl (MLV) is primarily a sound barrier (adds mass to block transmission) and has low absorption coefficients across all frequencies. It should not be used as an absorber - its purpose is isolation, not room treatment.

Carpet with a thick underpad provides meaningful absorption at 500 Hz and above (α 0.50-0.73) and serves as a cost-effective floor treatment for reducing flutter echo and footstep noise.



For commercial spaces, suspended acoustic ceiling tiles offer practical broadband performance (α 0.78-0.92 at 500-2,000 Hz) without wall treatment.
